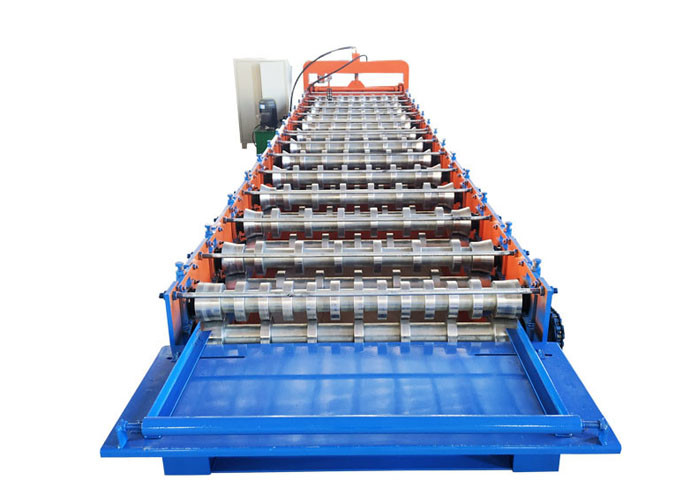

color steel corrugated roofing Sheet Metal Roll Forming Machines hydraulic drive
Equipment technical parameters
Machine Feature:
1. Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
Main parameter of Corrugated Iron Roofing Sheet Double Layer Roll Forming Making Machine Made in China
| No. | main parameter of Corrugated Iron Roofing Sheet Double Layer Roll Forming Making Machine Made in China |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1250mm |
| 3 | Rollers | 12 rows |
| 4 | Dimensions | 7.2*1.55*1.51m |
| 5 | Power | 4 4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 8-10m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5.8T |
| 11 | Voltage | 380V 50Hz 3phases |
| 15 | Control system | PLC control |
Hydraulic shearing
| Material of blade | Cr12,heat treatment 60-62°C |
| Shearing system | It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 3kw Hydraulic oil :40# |
Electrical system
| Main computer control cabinet | It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computer mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA. The seller will provide Chinese and English language screen. |
